Lahore Luxury Marquee Cooling Guide: 47°C Summer Heat & Monsoon Humidity Climate Engineering

1. Lahore Climatic Envelope: 47°C Dry Bulbs to 88% RH August Monsoons

Lahore exhibits a composite subtropical semi-arid climate (Köppen BSh) characterized by two punishing thermodynamic phases during the commercial event calendar.

Phase 1: Pre-Monsoon Scorching Heat (May through June). Outdoor dry-bulb temperatures regularly surge to 45°C–47.5°C (113°F–117.5°F), with relative humidity hovering between 18% and 28%. During this phase, sensible heat transmission through PVC roof membranes is extreme, demanding high volumetric CFM and oversized condensing coils that prevent high-pressure compressor trips.

Phase 2: Monsoon Vapor Saturation (July through September). While dry-bulb temperatures drop slightly to 35°C–38°C, relative humidity soars to 82%–90% RH following heavy rains. Outdoor air contains over 155 grains of moisture per pound of dry air. If climate systems lack deep evaporator coil surface area, latent heat removal collapses, causing indoor relative humidity to spike above 75%, leading to fabric sweating and extreme guest discomfort.

LAHORE DESIGN CLIMATIC CONDITIONS (ASHRAE 0.4% PEAK):
- Extreme Summer Peak: 46.8°C DB / 24.2°C WB (May/June Sensible Peak)
- Monsoon Latent Peak: 36.2°C DB / 29.8°C WB (July/August Enthalpy Peak = 47.8 BTU/lb)
- Winter Heating Baseline: 4.5°C DB / 95% RH Dense Radiation Fog (December/January).

2. Bedian, Raiwind Road & DHA Marquee Corridor Demographics

The marquee sector in Lahore is concentrated along major arterial farm-house corridors: Bedian Road (leading toward DHA Phase 9 Prism), Raiwind Road (from Thokar Niaz Baig toward Lake City), and Phase 8 DHA Commercial Zones. These venues range from 12,000 to over 35,000 square feet of clear-span column-free space.

Events frequently host 800 to 2,000 high-profile guests in formal designer attire. Guest expectations for luxury, aesthetic perfection, and acoustic refinement are exceptionally high. In this competitive market, an event hall with noisy air conditioners or hot spots in the bridal family zone suffers immediate reputational degradation.

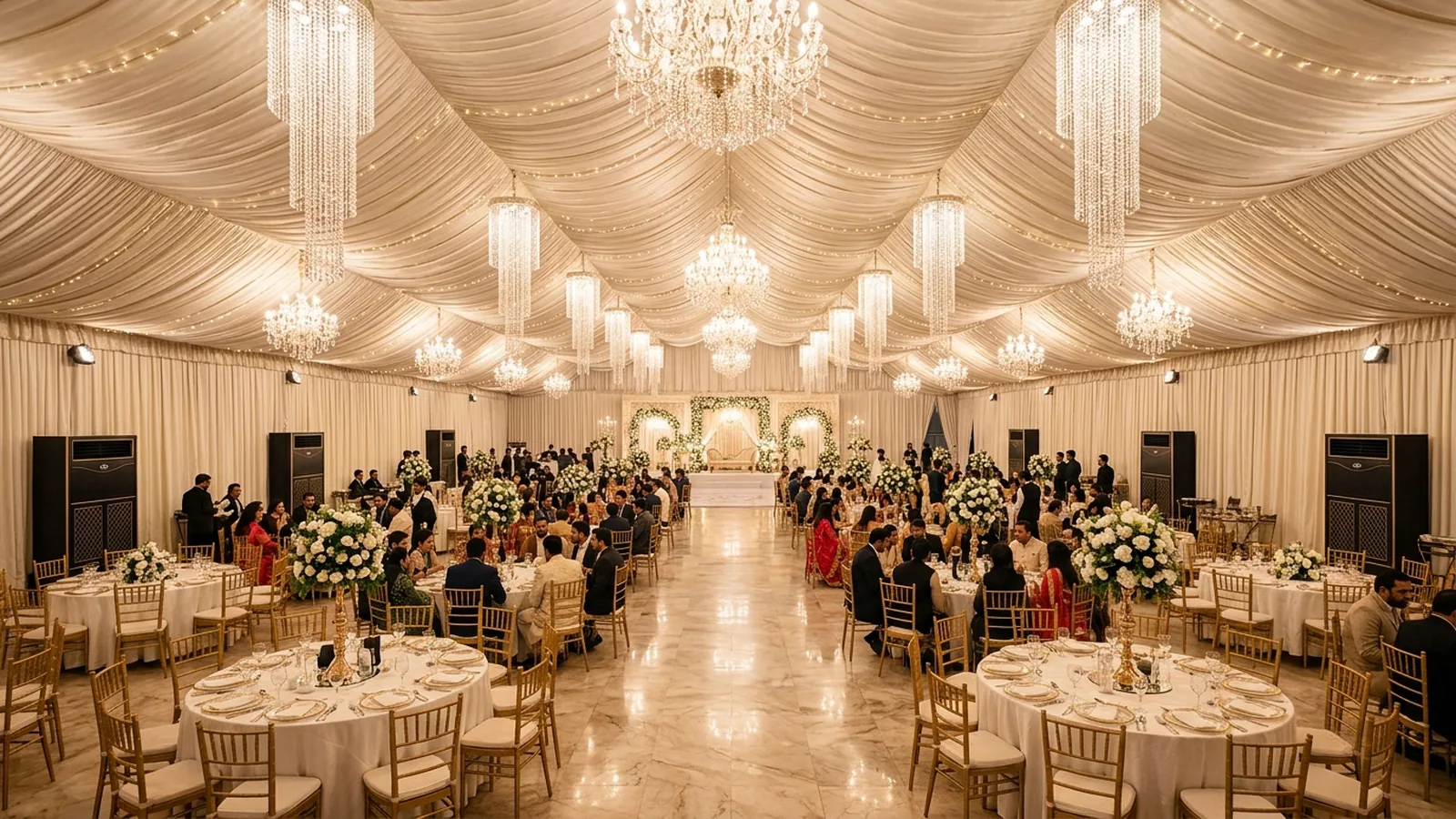

Venues along these corridors require perimeter-stationed floor cabinets that blend seamlessly into interior velvet and glass drapery, discharging conditioned air over head height while operating below 54 dBA so as not to overpower acoustic wedding speeches or qawwali performances.

3. LESCO Feeder Instability & 340V Low-Voltage Ride-Through Protection

Electrical power infrastructure along peri-urban Lahore corridors is supplied by Lahore Electric Supply Company (LESCO) rural/industrial feeders. During peak summer evenings, grid transmission lines suffer severe voltage sags due to massive agricultural tube-well and residential air conditioning loads.

Nominal 400V 3-phase supply frequently drops to 340V–355V line-to-line. Under low voltage, induction motors draw proportionally higher current (I proportional to 1/V) to maintain mechanical shaft torque. In standard commercial air conditioners, this causes thermal overload relays to trip, shutting down compressors mid-event.

Fusion Developers cabinets deployed in Lahore incorporate Wide-Voltage Range Contactors and digital Under-Voltage Protection with Low-Voltage Ride-Through logic. Magnetic coils operate reliably down to 330V, while Class H insulated compressor motor windings tolerate transient overcurrent without overheating, guaranteeing uninterrupted cooling through LESCO grid brownouts.

4. Perimeter Placement Strategy for 120ft–150ft Clear-Span Pavilions

Lahore marquees feature monumental clear-span aluminum portal arches spanning 120ft to 150ft wide without central support pillars. Suspended ductwork from roof trusses is structurally undesirable due to fabric weight limits and aesthetic drapery.

The optimal air distribution strategy deploys cabinets along the long perimeter sidewalls in an opposing or cross-flow layout. For a 120ft x 180ft (21,600 sq ft) marquee requiring 180 tons of cooling, nine 20-ton cabinets are stationed along the perimeter (5 along one wall, 4 along the opposite wall).

Discharge hoods with aerodynamically contoured curved blades project high-velocity air at a 30° upward angle across the 60ft half-span. The air streams entrain surrounding room air, establish gentle ceiling washing that sweeps away solar fabric heat, and descend gently into the central dining tables at comfortable comfort velocities of 0.25 to 0.35 m/s.

5. Winter Reverse-Cycle Heat Pump Operation for December–January Fog

The peak wedding season in Lahore spans the winter months of December and January. While summer requires immense cooling, winter in Lahore brings dense radiation fog (smog) with nocturnal temperatures plunging to 4°C–6°C (39°F–42°F).

An unheated 20,000 sq ft marquee becomes freezing cold, making guests in formal evening attire uncomfortable within 30 minutes. Traditional outdoor gas patio heaters ('mushroom heaters') produce hazardous carbon monoxide, open flame fire risks near fabric drapery, and localized scorching with zero overall space heating.

Fusion Developers commercial cabinets feature factory-integrated Reverse-Cycle Heat Pump functionality. By reversing the 4-way refrigeration valve, evaporator coils become heating condensers, delivering warm, filtered air (discharge temperature 36°C–40°C) that gently warms the entire marquee up to a cozy 22°C with zero open flames and 100% electrical safety.
